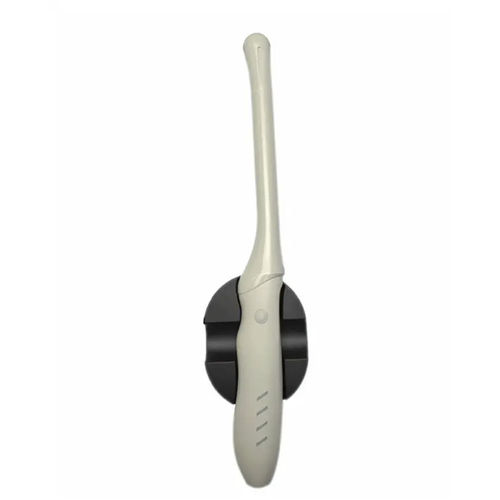

Hand-held ultrasound system YSB-C10RQfor gynecological and obstetric ultrasound imagingfor endovaginal ultrasound imagingcolor doppler
Add to favorites
Compare this product
Characteristics
- Ergonomics
- hand-held
- Application
- for gynecological and obstetric ultrasound imaging, for endovaginal ultrasound imaging
- Imaging modes
- color doppler
- Options
- all-in-one probe, wireless probe
- Probe type
- endocavitary
- Probe frequency
Min.: 6.5 MHz
Max.: 8 MHz
- Weight
204 g
(7.2 oz)- Length
345 mm
(13.6 in)- Height
70 mm
(2.8 in)- Depth
30 mm
(1.2 in)
Description
Unlimited users
Free software and unlimited software updates
*Extendable up to 3 years
Frequency
6.5-8MHz
Depth
30-120mm
Mode
B Mode
B+M
PW Doppler
Color Doppler
Power Doppler
Applications
Obstetrics / Gynecology
Software Controls
GN(gain)
D(depth)
ENH(enhancement)
DR(dynamic range)
F(frequency)
FocusPos
PRF
WF
Mode
8TGC
Biopsy
Annote
Measurement
B: Length,Area,Circumference,GA
(CRL,BPD,GS,FL,HC,AC)
B+M: Heart Rate, Time, Distance
B+PW:Velocity, Heart Rate(2), S/D, Depth
Connection Type
Type-C cable / WiFi (802.11n/20MHz/5G)
Probe built-in WiFi signal
Supporting Devices
Tablet, Smart phone, PC, etc
Working system
Android,IOS, Windows
Lithium Battery
4200 mAh. 3.7V
Working time: t3h
Standby time:>12h
Battery life 5-8years
wireless charging
Dimensions
345(h)x70(w)x30(d) mm
Net weight 204g
Elements 192
Footprint Rio
Boot-up
Platform dependent, generally <5 seconds
Package includes:
1* wireless probe
1* Type-C cable
1* USB charger
1* wireless charger
