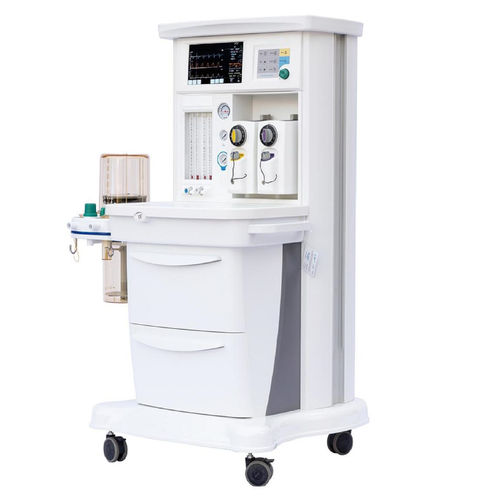

Trolley-mounted anesthesia workstation YSAV6301

with respiratory monitoringwith ventilatorwith gas scavenging system

Feature Integrated breathing circuit with APL valve, excellent tightness Replacing drive bellow is NOT required when operating Adult/pediatric anesthesia Applied with 1 high-precision vaporizers.(Selectatec) 10.1 inch screen Real-time detection for loops, Paw, BPM, VT and compliance Comprehensive monitoring capabilities include ventilation parameters monitoring,preset parameters, alarm indication and breathing waveform monitoring ACGO available to connect with T/Bain circuit for open operation.(Optional) Technique Specifications Physical specifications Dimensions: 70*85*140cm Weight: 65kg Casters: Front wheels with lock Screen: LCD Display: 10.1 inch Display graphics: Waveforms of P-T, F-T, V-T Working specifications Power: AC 110V-240V, 50Hz/60Hz Battery Power: ≥180 mins Pipeline supply Gas configuration: O2, N2O, Air (Optional) Pipeline input range: 280-600kPa(40~85psi) Modes of ventilation VCV: Volume Control Ventilation SIMV: Synchronized Intermittent Mandatory Ventilation MANUAL: Manual STAND-BY: STAND-BY Ventilator parameter Working type: Electronic control, pneumatic driven Tidal Volume range: 20-1500ml Pressure range: 5-60 cmH2O Rispriation Rate Range: 1-100bpm(1-40bpm under SIMV) l:E Range: 4:1-1:8 Ptrigger Range: -20-0cmH2O Minute volume range: >18L/Min SIGH range: 0-5/100
