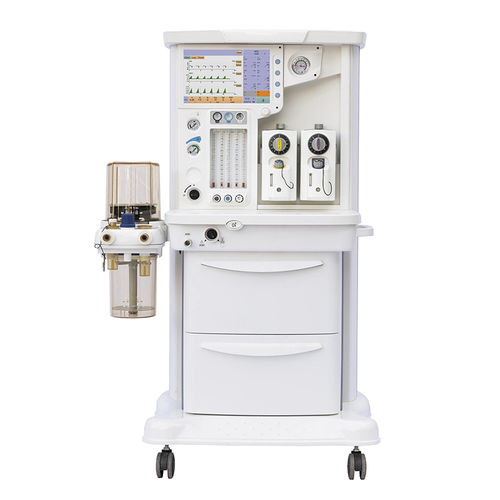

Trolley-mounted anesthesia workstation YSAV6302

with respiratory monitoringwith ventilatorwith gas scavenging system

Physical Specifications Dimensions: 70*85*140cm Weight: 65kg Casters: Front wheels with lock Screen: 12.1 inch LCD Working Specifications Power: AC 220V±10%,50Hz±2% Pipeline Supply Gas configuration: O2, N2O, Air Pipeline input range: 280-600kPa Battery Power Run-time: ≥180 mins Pre-setting Functions Language: English Calibration: Automatic Ventilator Specifications Modes of Ventilation VCV: Volume Controlled Ventilation SIMV-V: Synchronized Intermittent Mandatory Ventilation-Volume SIMV-P: Synchronized intermittent Mandatory Ventilation-Pressure MANUAL: Manual A/C: Assist /control Ventilation PCV: Pressure Control Ventilation PSV: Pressure Support Ventilation STAND-BY: STAND-BY Ventilator Parameter Working type: Electronic control, pneumatic driven Tidal Volume range: 20-1500ml Pressure range: 5-60 cmH2O Rispriation rate range: 1-100 bpm (1-40bpm under SlMV) l:E range: 4:1-1:8 Ptrigger range: -20-20 cmH2O (based on PEEP) Flow trigger: 0-15L Minute volume range: >18L/Min SlGH range: 0-5/100 System Standard Hypoxic guard system: N2O cut-off valve, O2 concentration >25% Safety valve: <12.5kPa Fresh gas compensation: 25-75L/min Volume of CO2 absorber: 2L Flow meter: 5 tubes, Cascade 0.1-15L/min O2 0.1-15L/min N2O,0.1-15L/min air Vaporizer: 2 Selectetac, maximum 2 mounts (lsoflurane/Enflurane/Sevoflurane/Halothane) Monitoring Display graphics: Waveforms of P-T, F-T, V-T, loops of P-V,V-F,F-P(Zoom in/out, comparison, freeze) Types: VT, MV, BPM, Paw, Lung compliance, Inspiratory Platform,FiO2 Alarm Limits Audio/Visual: No tidal volume.MV,Paw, FiO2 limitation O2 Air failure, AC power failure, Battery low PEEP Type: Integrated, Electronic control Range: OFF, 3-30cmH2O
