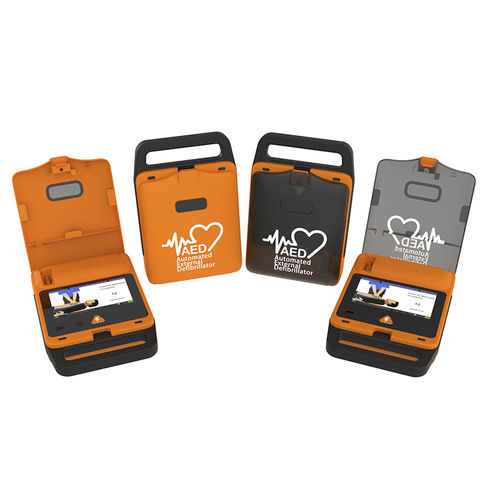

AED YSAED-300

electricfor public spacefor home use

Model:YSAED-300 Defibrillator Category Specification Output Biphasic Truncated exponential Energy Sequence(child) 10J-100J(option) Energy Sequence(Adult) 100J-360J(option) Charge Time 4 sec.to 200J 7 sec. to 360 J(New battery) Analysis Time 6 sec. The maximum time from the initiation of rhythm analysis to readiness for discharge with a new battery Less than 10 seconds The maximum time from the initiation of rhythm analysis to readiness for discharge after 6 shocks Less than 10 seconds The maximum time from initially switching power on to readiness for discharge Less than 15 seconds Visual Prompts LED prompts; Automatic Self-test Controls Three buttons: Defibrillation, mode switching, language switching Output Energy Accuracy ±10% into any impedance from 25Ω to 175Ω The Maximum Voltage 2000V±50V Output disabled when the patient impedance is outside limits 20Ω to 200Ω Battery Part No CR123A-4x3 Non-rechargeable 4200mAh Capacity 200 times discharges at 360 Joules Shelf Life (25°C+15°C) 5 years standby (after installation) Physical Dimensions 280 x 209 x 80 mm Weight 2.6 kg Operating Temperature 0°C to 40°C Operating Humidity Relative humidity between 30% and 95%(non-condensing) Storage Temperature (without battery) -20°C to 55°C Storage Humidity (without battery) Up to 93%(non-condensing)
