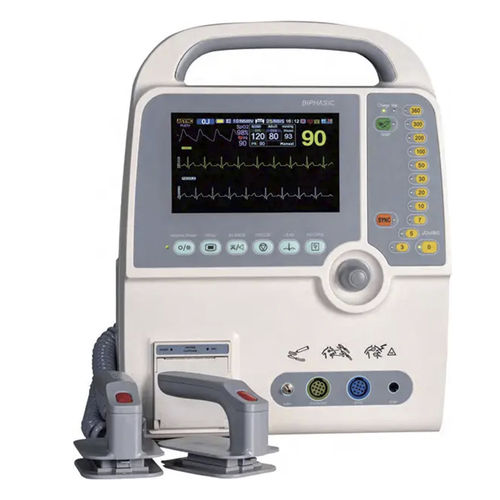

Electric external defibrillator YSOT-DM80C

for public spacefor ambulanceswith monitor

Defibrillator YS-8000C Defi-Monitor Physical characteristics: Main unit: Portable Dimensions:L320xW205xH410 Weight:9.5kg Technical specifications Defibrillator Defibrillator type: Manual, Synchronized, Asynchronized, Out put waveform: Monophasic technology Energy accuracy: <±1% Energy selection: 0，3，5，7，10，20,30，50,100,200,300,360 joule(normal at a resistance of 50) Charging time: Maximum 8 seconds to 360 Joules Standard Adult/Pediatric Paddles: Reusable external adult paddles(pediatric paddles integrated) Power Requirements AC Power supply: 110V, 60 Hz /220V,50 Hz Vehicle Voltage: DC 12V Internal Battery Backup Battery type: Rechargeable lead-acid battery/ lithium battery(optional) Charging time: Time-Minimum of 4 hours for full charging Battery charging: During AC Power Supply operation of the device. Charging /Low Battery Indication: Red LED Battery Capacity: 100% of the battery will provide 120 mins of monitoring; and 30 discharges at 360 joules. Display LED Dimensions: 7’diagonal {155mm*88mm} Type: High resolution true-color graphic LED Resolution: 480X234 ECG ECG lead: Ⅰ, Ⅱ, Ⅲ, AVR, AVL, AVF, V1～V6, GND S-T segment analysis: -2.0～2.0mv Arrhythmia analysis: yes Protegtion: With stand 4000vAc/50Hz voltage in isolation and work against eletrosurgical interence and defibrillation Respiration Measurement method: Thoracic impedance Standard parameter & configuration ECG/ RESP/DEFIBRILLATOR Optional parameter Recorder
