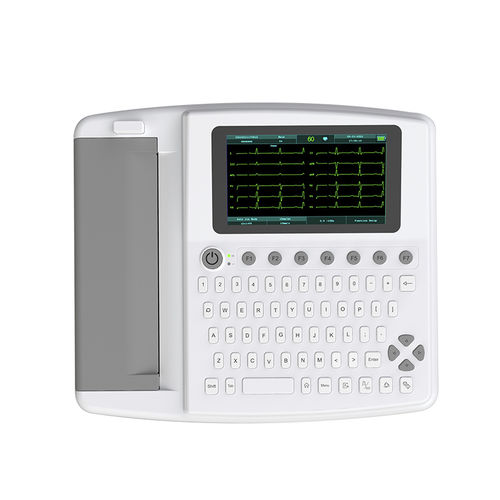

Resting electrocardiograph YSECG-012L

12-channeldigitalwith printer

YSECG-012L 12-Channel Electrocardiograph Clinical-Grade Precision, Streamlined Workflow Key Features: 7" HD Touchscreen & Intuitive UI: High-resolution color display with full alphanumeric keyboard and shortcut keys for rapid data entry and clear visualization of 12-lead/Cabrera waveforms. Simultaneous 12-Lead Acquisition: 1000Hz sampling rate + 24-bit A/D conversion ensure ultra-precise signal capture. Advanced DFT/AC/EMG filters (6 adjustable ranges) minimize noise for diagnostic-quality tracings. Smart Analysis & Reporting: Auto-measurement algorithms generate instant interpretations. Store 1000+ cases internally; export via USB for PC review/statistics using dedicated software. Versatile Printing & Customization: Built-in thermal printer supports rhythm modes, trend charts, and configurable reports (time, sensitivity, patient data). Optimized paper usage (210mm x 30m). Extended Mobility: High-capacity Li-ion battery enables prolonged field use. Compliant with floating input/defibrillation protection (CMRR ≥100dB, leak current <10μA). Technical Highlights Signal Integrity: ≥50MΩ input impedance, ±10mV dynamic range, 0.05–160Hz frequency response. Safety & Calibration: Polarizing voltage ≥±300mV, 1mV±2% calibration, <15μVp-p noise. Multi-Mode Operation: Manual/Auto/Rhythm modes + 1-channel extended monitoring. Ideal for clinics, home visits, and health screenings—combining hospital-grade accuracy with streamlined portability.
