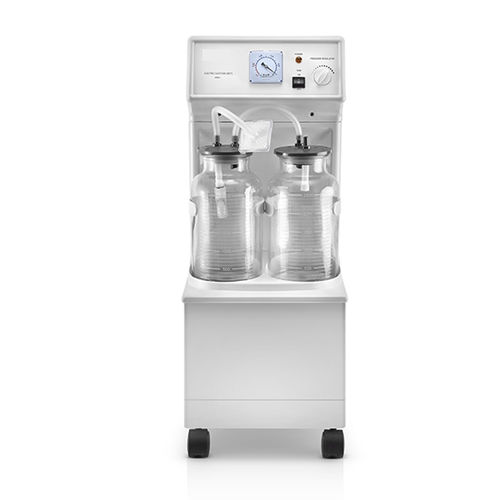

Electric Suction Unit
Features
Oil-free piston pump helps to keep from oil mist pollution.
Plastic panel makes it resistant from water erosion.
Low noise, easy to operate with manual and pedal switches.
Overflow valve helps to prevent liquid from flowing into pump.
Medical suction, high negative pressure, high flow rate.
Negative pressure is adjustable according to requirements.
Main Technical Specifications
Suction pump: piston pump
Power supply: AC220V±22V/110V±11V,50Hz/60Hz±1Hz
Ultimate negative pressure value: ≥0.09MPa
Input power: 150VA+15%
Regulating scope of negative pressure: 0.02MPa ~ultimate negative pressure
value
Pumping rate: ≥20L/min
Reservoir: ≥2500 mL/pc, 2pcs in the suction unit
Noise: ≤60dB(A)
Dimension: YSXYQ-H001(350mmX312mmX800mm); YSXYQ-H002 (380mmX312mm X480mm)
Weight: YSXYQ-H001 (21kg); YSXYQ-H002 (16kg)
Normal Working Condition
Ambient temperature: 5°C -35°C
Relative humidity: ≤80%
Atmospheric pressure: 86kPa-106kPa
Note: When storage and transportation temperature is lower than 5°C, the suction unit shall be placed in the place with normal working temperature for over 4 hours before use.
List of Accessories
Suction hose (ф7xф12, length≥1.3m): 1 piece
Fuse: 2 piece
Air filter: 2 piece
Power cord: 1 piece
Pedal switch: 1 piece
