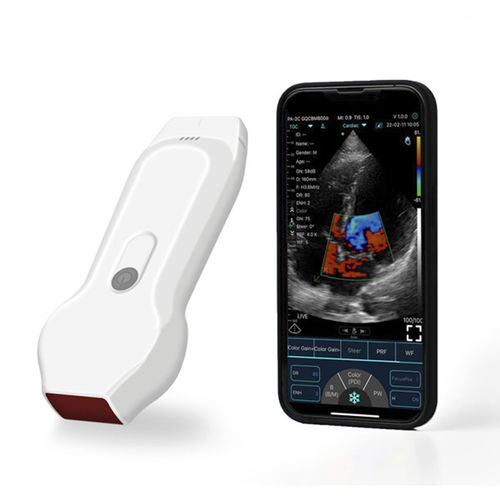

Hand-held ultrasound system YSB-C10XL
for cardiovascular ultrasound imagingfor breast ultrasound imagingfor skin ultrasound imaging

Hand-held ultrasound system - YSB-C10XL - YSENMED - for cardiovascular ultrasound imaging / for breast ultrasound imaging / for skin ultrasound imaging
Hand-held ultrasound system - YSB-C10XL - YSENMED - for cardiovascular ultrasound imaging / for breast ultrasound imaging / for skin ultrasound imaging
Hand-held ultrasound system - YSB-C10XL - YSENMED - for cardiovascular ultrasound imaging / for breast ultrasound imaging / for skin ultrasound imaging - image - 2
Hand-held ultrasound system - YSB-C10XL - YSENMED - for cardiovascular ultrasound imaging / for breast ultrasound imaging / for skin ultrasound imaging - image - 3
Hand-held ultrasound system - YSB-C10XL - YSENMED - for cardiovascular ultrasound imaging / for breast ultrasound imaging / for skin ultrasound imaging - image - 4
Add to favorites
Compare this product


Characteristics

Ergonomics
hand-held
Application
for cardiovascular ultrasound imaging, for breast ultrasound imaging, for skin ultrasound imaging
Imaging modes
B/W, color doppler, spectral doppler
Options
all-in-one probe, wireless probe
Probe type
linear-array, phased-array
Probe frequency

Min.: 2.2 MHz

Max.: 10 MHz

Description

Dual-Probes Multipurpose Ultrasound Phased+Linear Probe Mini wireless Cardiovascular ultrasound, multipurpose dual head linear+cardiac ultrasound probe can provide you with HD heart images. The YSB-C10XL, as a kind of WiFi ultrasound probe, is a combination of two probes, one side of the phased array probe and the other side of the line array probe. Specification Probe: Wireless dual head phased+linear probe Elements: Dual 128 Frequency: 2.2-3.6mhz, 7.5/10mhz, 2.2-3.6mhz Depth: 90-160-200-240mm, 20-40-60-100mm,90-130-160-200mm Presets: Abdomen, Cardiac, User1, User2 Thyroid, Small parts, Pediatrics, Vascular, Carotid, Breast, Msk, Nerve, Aesthetics, Vessel Flow, User1, User2 Host: Tablet, Smart phone, PC Connection: WiFi*USB Software Adjustable Parameters: GN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote, Page left/right/up/down Measurement: B: Length, Area/Circumference, Angle, Trace, Distance B+M: Heart Rate, Time, LVIDd, LVIDs, SV, EF, Distance B+PW: Velocity, Heart Rate(2), S/D, Depth Auto vessel flow measure: PS, ED, TAMAX, TAMEAN, PI, RI, S/D, Diam, Flow Playback Frames: 100, 200, 500, 1000 optional Display Mode: B, B/M, color, PW, PDI Image Save: jpg, avi, Mp4 and DICOM format Image Gray Scale: 256 level WiFi Type: Built-in WiFi, 802.11g/20MHz/2.4G/5G/450Mbps Channel: 32 Frame: 24s/f Gain: 40-110Db Language: Chinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil) Power: by built-in battery Power Consumption: 4W (probe run) /1.5W (probe stop) Battery Replaceable: Yes Battery Last: 3-4 hours Charger: USB Charger, wireless charger
