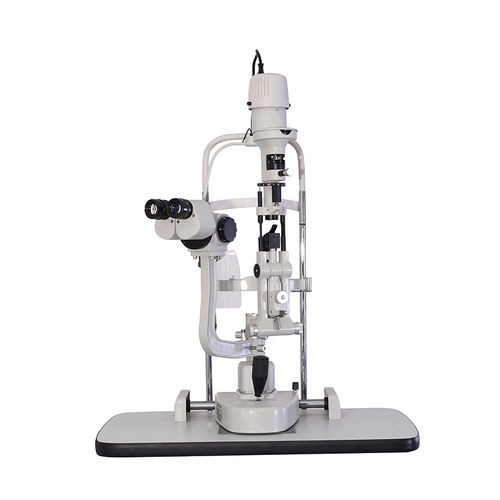

Table slit lamp YSLXD-2ER

High Quality Medical Slit Lamp Technical Specifications Microscope - Type - Galileo parallel style - Magnification change - Five magnification - Eyepiece - 12.5x - Total magnification - 6x 10x 16x 25x 40x - Field of View - 6X: 33mm, 10X: 20mm, 16X: 13mm, 25X: 8mm, 40X: 5mm - Range of adjusting the distance of pupil - 55 mm-75 mm - Range of adjusting eyepieces - -8D~+8D - Magnification - 0.794x - Slit width - 0mm-14mm - Slit length - 1mm-14mm - Diameter of aperture - φ14mm, φ10mm, φ5mm, φ2mm, φ1mm, φ0.2mm - Slit angle - 0-180 - Illumination angle - 0, 5, 10, 15, 20 - Filter - Heat absorption, Grey, red free(Green), Cobalt blue - Bulb - 12v, 50w halogen bulb Moving - Forward and backward moving - 90mm - Left and right moving - 100mm - Handle moving - 15mm - Up and down moving - 30mm Jaw bracket part - Up and down moving - 80mm - Fixation - Red LED Power - Input voltage - 110/220V±10% - Input frequency - 50/60Hz - Input power - 60VA - Output voltage - Illumination: 4.5V 9V 12V Fixation: 6V - Safe standard of electric - IEC601-1, type Ⅰof BF Model Weight and Dimension - Packing box - 720mmx495mmx480mm - Gross weight - 25Kg - Net weight - 21Kg
