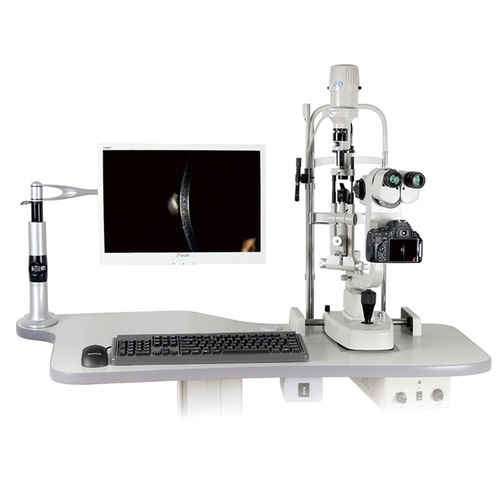

Digital slit lamp YSLXD-3ER

table

Digital Slit Lamp Features Nikon D5200 professional optics with high definition DSLR (24.1 Mega pixels) Special case storage system Professional image analyzing and processing function Flash illumination (option) Background light system High definition video recording function Technical Specifications Microscope - Type - Galileo parallel style super optic Magnification change - Five magnification Eyepiece - 12.5x Total magnification - 6x 10x 16x 25x 40x Field of View - 6X: 33mm, 10X: 20mm, 16X: 13mm, 25X: 8mm, 40X: 5mm Range of adjusting the distance of pupil - 55 mm-75 mm Range of adjusting eyepieces - -8D~+8D Magnification - 0.794x Slit width - 0mm-14mm Slit length - 1mm-14mm Diameter of aperture - φ14mm, φ10mm, φ5mm, φ2mm, φ1mm, φ0.2mm Slit angle - 0-180 Illumination angle - 0, 5, 10, 15, 20 Filter - Heat absorption, Grey, red free(Green), Cobalt blue Bulb - 12v, 50w halogen bulb Moving - Forward and backward moving - 90mm Left and right moving - 100mm Handle moving - 15mm Up and down moving - 30mm Jaw bracket part - Up and down moving - 80mm Fixation - Red LED Power - Input voltage - 110/220V±10% Input frequency - 50/60Hz Input power - 60VA Output voltage - Illumination: 4.5V 9V 12V Fixation: 6V Safe standard of electric - IEC601-1, typeⅠof BF Model Weight and Dimension - Packing box - 720mmx495mmx480mm Gross weight - 25Kg Net weight - 21Kg
