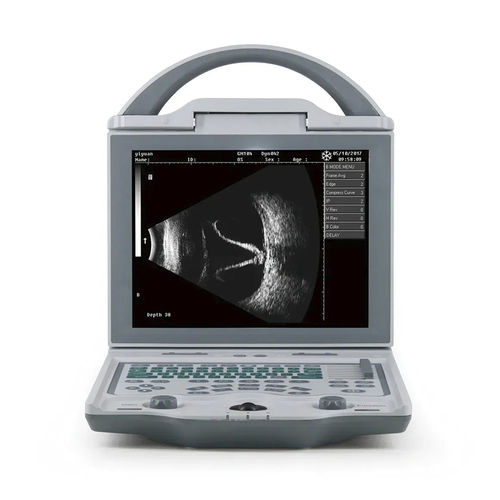

Portable ultrasound system YSODU5

for ophthalmic ultrasound imagingB/Wbuilt-in console

Full Digital Ophthalmic A/B Ultrasound Scanner Specification Dual-mode TV output: PAL/NTSC, connecting with video recorder and ultrasonic working station Power supply: AC100-240V~, 1.2-0.6A, 50-60Hz Adapter output: DC12.8V 3.0A Main unit weight: 4.5 Kg Main unit size: 256mm(L) x 150mm(W) x 326mm(H) Humanized operation design 10.4' adjustable LED screen Press one key could transport current image to PC workstation Equipped with keyboard floodlight, used for dark room A-SCAN ACD, Lens, Vitreous and Axial length measurement IOL Formulas: SRK-II, SRK-T, BINKHORST, HOLLADAY, HOFFER-Q, HAIGIS Direct contact/Immersion measurement Support Normal, Cataract, Aphakic and Special eye model B-SCAN High resolution and contrast B scan 8 kinds pseudo-color Multiple electronic measurement: Distance, Area, Perimeter, Volume 8 kinds TGC adjustable Abundant datas management 100 images permanent storage capacity Standard workstation software, easily management and print data Standard Configuration Main unit: 1 pc 10MHz mechanical sector B probe: 1 pc 10MHz A probe: 1 pc Network cable: 1 pc Optional Configuration Large lithium battery 4400mAh Battery charger Trolley Foot switch Ethernet switch
