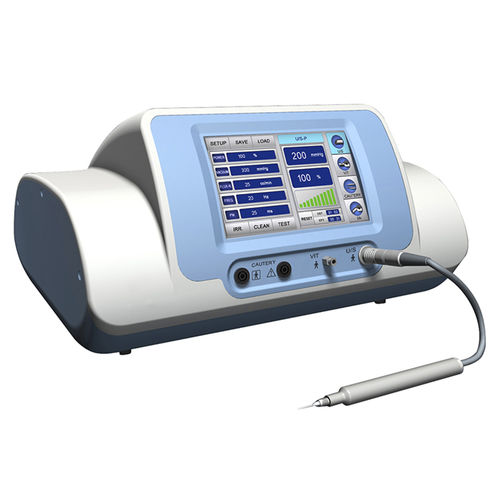

Laboratory emulsifier for the pharmaceutical industry YSMD-480A

benchtop

Phaco Emulsifier Description All parts of the system are fully controlled and monitored by Microprocessor Technology Smoothly and efficiently controlling the emulsifier process with digital frequency tracing technology of handpiece Easy operation and user-friendly interface with large touch screen TFT and functional menu Up to 10 sets of parameters preset meets different requirements and simplifies the surgery operation Auto test checks tubing and handpiece problems (e.g.: block or leakage) The peristaltic pump gives complete control of aspiration flow rate as well as freedom from anterior chamber shallowing. This way can give stronger sution when working in l/A Built-in vitrectomy and cautery Intelligent voice reminder Features Smaller, Easier, More Powerful Specifications Ultrasonic Emulsification(U/S) 1.Frequency: 40kHz 2.Functional mode: Continuance, Pulse, Linear, Burst Continuance-Emulsifying power Range: 0~100% Pulse: Frequency Range 1~99Hz Linear: Emulsifying Power Linearly controlled by Foot Switch, varies between 0~100% Burst-Stopping Time: 1.5~0s - -Working Time: 5~100ms 3.Maximum Vacuum: 500 mmHg 4.Maximum Flux Rate: 40 ml/min Irrigation/Aspiration(l/A) Flux Rate: 0~40 ml/min Reflux Rate: 20 ml/min Max Vacuum: 500 mmHg Vitrectomy(VIT) Cutting Power Source: Air Pump Cutting Frequency: 20~600/min; Single Cut Mode Maximum Vacuum: 500 mmHg Maximum Flux Rate: 40 ml/min Cautery Maximum Power: 10 W±20%(200Ω) Type: Bipolar Power preset between: 0~100%
