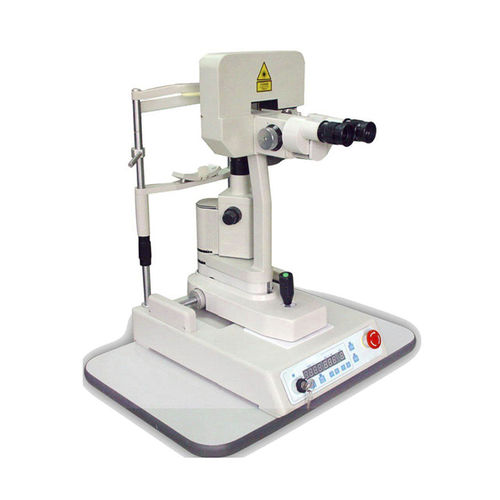

Ophthalmic laser YSMD-920

Nd:YAGtabletopnanosecond

Nd:YAG Laser Photodisruptor for Ophthalmology Feature ◆ Easy setup for installation and maintenance purpose ◆ Fixed on mobile wheel stand for transportation ◆ Height adjustable stand ◆ Shorter movement for slit lamp releases back fatigue ◆ Easy & intuitive operating console ◆ Emergency Stop Button ◆ Treatment Room Connected Button ◆ Adjusted focal plane for laser beam and aiming beam ◆ Adjust diopter for slit lamp binocular microscope only to focus the laser & aiming beam on the target ◆ Highly concentrated laser beam and quick dispersion   Specifications Laser Type: - Nd:YAG, Q-Switched Wavelength: - 1064 nm  Mode: - Q-Switch  Pulse Output: - 1,2,3 pulses per burst Pulse duration: - 4.5 ns  Pulse Repetition Rate: - 2.5Hz  Output Energy : A)  1 pulse maximum output: - 11mJ B).  2 pulse maximum output: - 9mJ C).  3 pulse maximum output: - 28mJ D).  Output Energy Regulation: - 100%~6% adjustable by 7 steps Cone Angle: - 18°  Spot Size: - 30 µm  Aiming Beam Wavelength: - 633nm  Aiming Output Power PC: - < 0.4 mW Cooling system: - Air cooled Machine packing size: - 76.5*65*50mm Gross Weight of machine: - 25kg Packing size of table: - 69*58*42cm Gross weight of table: - 23kg
