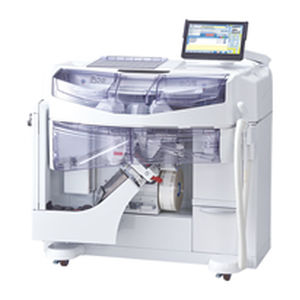

Automatic medicine packaging and dispensing system YS-Twin-R93V

Rotary disk type is becoming current standard of dividing mechanism for powder packing machines. This is one of most outstanding idea and YUYAMA developed this superior structure first in the world. Since this disk should be big as possible to maintain its accuracy, we focused to make the size small and keep the disk size. Dispense Speed56, 51, 45, 40, 35, 23 pouch/min (5 levels Selectable) Pouch sizeW60, 70, 76, 80, 90mm X L70mm (5 size selectable) DimensionsWidth1,030×Depth660×H950mm WeightApprox. 200kg Power consumption1300VA (MAX) Power requirementsAC100V±10% 50/60Hz, Manual dispensing function (DTA)48 cell Maximum dispensing performance93pouches at 1 prescription OptionBarcode Reader, Tablet cassette UT, Conveyer unit, 4color pen liner, RFID indentification
