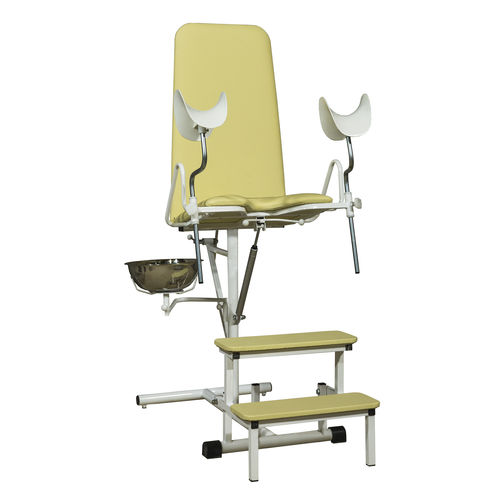

Gynecological examination chair KG-1M

pneumaticheight-adjustable2-section

The gynecological chair KG-1M with a pneumatic drive is used in medical institutions to accommodate women during gynecological examinations, various procedures, as well as minor surgical interventions. The chair consists of a base, a seat, a backrest, a step and knee rests. The base of the chair is an all-welded structure. The chair is mounted on four legs - two rubber front legs and two metal rear legs, which are adjustable in height to create stability of the base on uneven surfaces. The seat and backrest are metal frames with vinyl leather cushions attached to them. The seat angle is adjusted by a manually operated pneumatic actuator. The seat can only be adjusted with the patient seated in the chair by pressing the handle and moving the patient's centre of gravity forward. To raise the seat, pull the handle upwards and to lower it downwards. The backrest can be manually raised or lowered to any angle within the specified range. A folding two-step step is hinged to the front of the base. A stainless steel bowl holder bar is pivotally attached to the vertical post. Rigid knee pads are installed under the clamp bushings and fixed. The plastic knee pads are height adjustable, can be rotated around a vertical axis and are equipped with movable cushions that can swing about a horizontal axis. The standard equipment of the chair includes a stainless steel bowl and a convenient step to the chair. length - 1100 - 1650mm width along the cradles - 900mm height - 800 -1650mm The angle of the seat from the horizontal position upwards is 5-45 degrees. The angle of the backrest is 10-90 degrees. Maximum permissible load on the chair, kg - no more than 150. Weight is 36kg
