Transport stretcher trolley TBS-150

manual

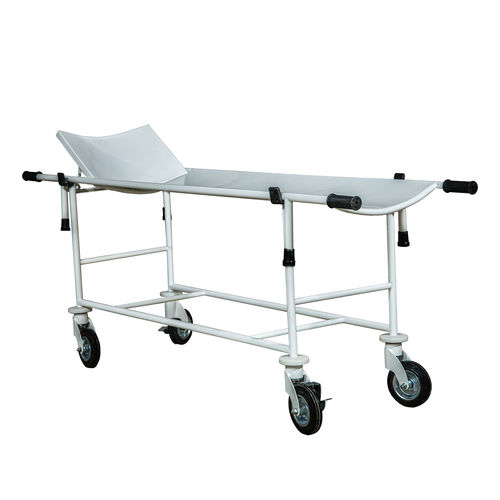

Trolley with removable stretcher TBS-150 is used in medical institutions for transporting patients inside the premises: operating theatres, X-ray rooms, treatment rooms, wards. The trolley is a welded frame mounted on four Ø160 self-positioning wheels, two of which are equipped with brakes. The trolley frame is made of steel pipes and consists of two H-shaped sidewalls connected by crossbars. On top of the frame sidewalls are four rubber-edged support legs for mounting stretchers. The stretcher is a tubular welded frame supported by four legs. The frame is covered with a metal sheet, which is the stretcher panel. The headrest is hinged to the panel and can be adjusted to an inclined position. The inclined position is fixed by means of a bracket, the side tubular rails of which engage with a rod fixed in the stretcher legs. The ends of the longitudinal bars are fitted with rubber handles. Overall dimensions, mm: length - 2120±10 width - 580±10 height - 810±10. The angle of inclination of the panel headrest is 15º, 30º, 45º. Rated load of the trolley, kg - 150. Weight of the trolley with the panel, kg - no more than 45.
