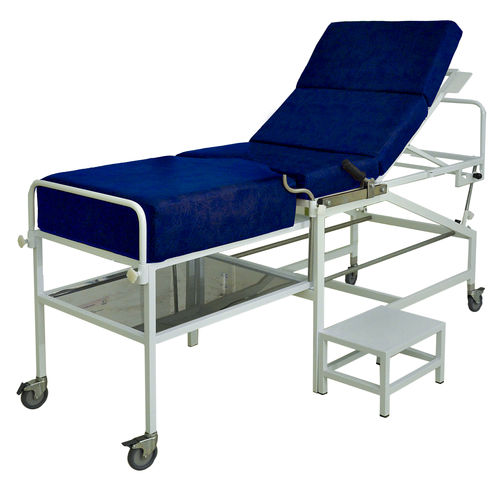

Delivery bed

mechanicaltiltingon casters

Maternity care bed KFR is used in maternity halls of medical institutions to accommodate women in labour in the second and third labour periods, as well as immediately after delivery. The bed is a transformable structure consisting of a base, tilting mechanisms, a pull-out panel and removable accessories (handrails, knee and footrests). The frame is made of a powder-coated steel profile. The bed is equipped with a sliding panel mounted on two castors with brakes. The base of the bed is welded, tubular, mounted on four supports. The two rear supports have wheels for moving the bed on the floor. Handles are installed on the base. All accessory fasteners are galvanised. The tilt of the bed, the angle of the back section and the headrest are adjusted manually. A special feature of the bed is the possibility of using it both in the second and third labour periods and after delivery. Overall dimensions, mm: width of the bed frame to the lodgements - 700±10 length - 1350±10 - 1800±10 bed height - 940±10 total height - 1100±10. The angle of inclination of the back section is 60º. Handle force, N - not less than 1500. Bed weight, kg - no more than 83.
