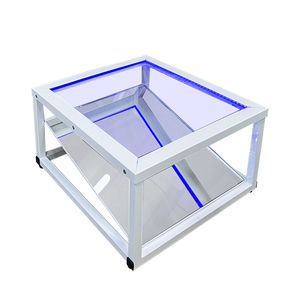

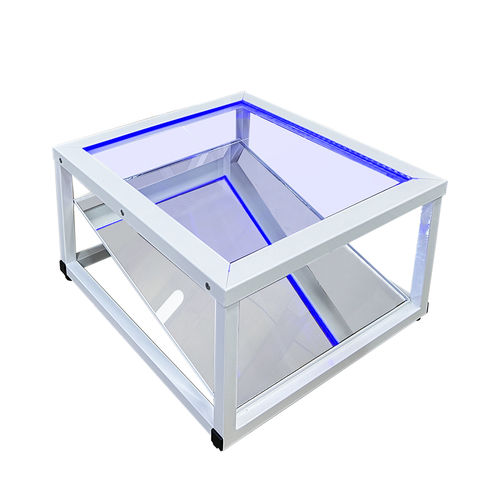

Fluorescent podoscope PL-1

Plantograph PL-1 is used in diagnostic offices, medical centers and other medical and preventive facilities for visual screening analysis of the state of the human musculoskeletal system, diagnosis and monitoring of orthopedic diseases and foot deformities in both children and adults, and is also used for the selection and manufacture of insoles (ortheses) and shoes. The design of the plantograph includes a horizontal support plate designed to accommodate the patient's feet and a mirror mounted at an angle to the support plate. The support plate and the mirror are located on an all-welded metal frame with the use of rubber seals, which ensure reliable fixation during diagnostics. Overall dimensions of the plantograph, mm (L*W*H) 520*585*310 The size of the platform for the feet, (L*W) 420*470 Angle of inclination of the mirror, ° 15° Power supply voltage, V 220±10% Frequency, Hz 50 Power consumption, W 15 Maximum permissible load on the working surface, kg 120 Note: The dimensions may have slight deviations, depending on the production batch, which do not affect the functionality and purpose of the product. Characteristics Country of origin - Ukraine Manufacturer - Zapovit Guarantee, month - 12 Production material Frame material - Metal
