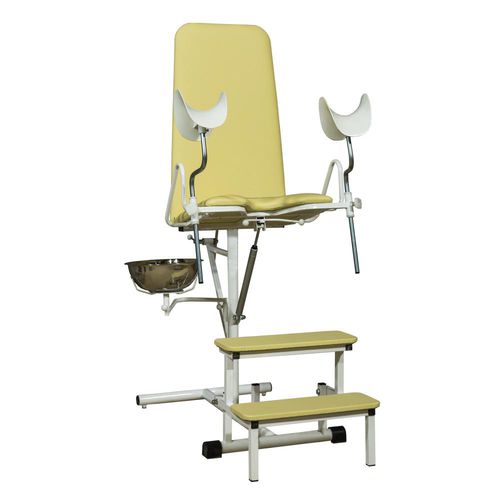

Gynecological examination chair KG-1M

pneumaticmanualwith legrest

The gynecological chair KG-1M with a pneumatic drive is used in medical institutions to place women on it during gynecological examinations, various procedures, as well as minor surgical interventions. The base of the chair is an all-welded metal structure. The chair is installed on four supports - two rubber front and two metal back, which are adjustable in height to create stability of the base on an uneven surface. The seat and back are metal frames with cushions attached to them, covered with eco-leather. The angle of inclination of the seat is changed using a pneumatic actuator with manual control. Adjustment of the seat is possible only with the patient placed on the chair, by pressing the handle and moving the center of gravity of the patient forward. Raising or lowering the backrest to any angle in the specified range is done manually. A folding two-step step is hinged to the front part of the base. A rod for a stainless steel bowl stand is attached to the vertical rack. Rigid knee pads are installed under the bushings of the clamps and fixed. Plastic knee pads are adjustable in height, can rotate around a vertical axis and are equipped with movable lozenges that can swing relative to a horizontal axis. The standard equipment of the chair includes a stainless steel bowl, a convenient step to the chair and plastic knee pads. The angle of raising the seat from the horizontal position upwards is 5-45 degrees. The angle of inclination of the back is 10-90 degrees. The maximum permissible load on the chair, kg - no more than 150. The weight of the chair, kg - no more than 36.
