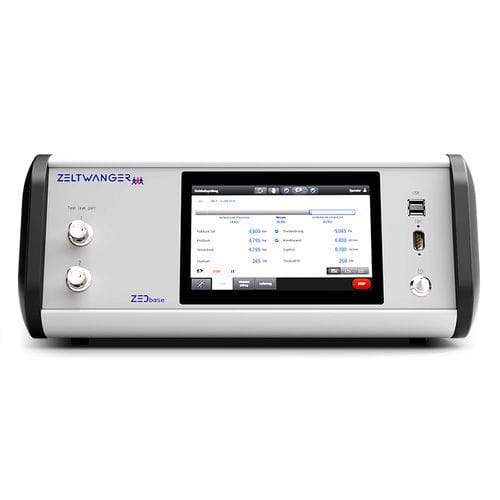

Pressure leak tester ZEDbase+

flowfor medical devicesfor packaging

The ZEDbase+ is an upgrade of the ZEDbase with a new selection of intelligent standard additional functions. This enables you to easily adapt the leak testing system to your individual testing requirements. The device can be set up and operated easily thanks to the intuitive user interface with many standard functions. MEASURING METHODS RD RD relative pressure (optional: 2-channel) RD / GP relative pressure with bell testing RD / DF relative pressure with flow rate DD differential pressure SD accumulation pressure MF mass flow ACCESSORIES (OPTIONAL) Test leak Leak calibrator Barcode scanner External ventilation valve Temperature compensation Keyboard APPLICATION EXAMPLES Automotive: Complete engines, cylinder heads, gears, heat exchangers, electronic control units, batteries, lines, valves, fuel cells, pumps, etc. Medical technology: Catheters, dialysis filters/boxes, flushing/hose systems, secretion containers, syringes, external lung machines, etc. Packaging/cosmetics: Dispensing pumps, plastic bottles, cartridges, etc. Household appliances: Water distributors/pumps, gas valves/fittings, stoves, compressors, etc. General industry: Cylinders, safety/non-return valves, couplings, grippers, ball valves, seals, etc. PRODUCT FEATURES PC-based control with powerful multi-core CPU and Windows Embedded 7 5″ TFT color monitor with touchscreen Graphic display of the measuring procedure Data storage > 1,000,000 test results > 1,000 freely configurable test programs Self-test function Statistics function Automatic test pressure monitoring Electronic pressure regulator Leak simulation connection to connect a test leak or leak calibrator
