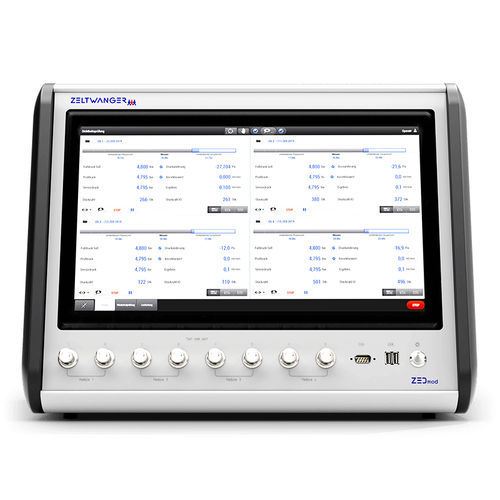

Pressure leak tester ZEDmod

flowfor medical devicesfor packaging

The further development of the MMS is the solution for complex leak and functional testing. The modular structure and the ZEDsatellite extension enable parallel testing on up to eight measuring circuits. ZEDmod offers the highest technical standards and completely new software MEASURING METHODS RD RD relative pressure (optional: 2-channel) RD / GP relative pressure with bell testing RD / DF relative pressure with flow rate DD differential pressure MF mass flow ACCESSORIES (OPTIONAL) Test leak Leak calibrator Barcode scanner External ventilation valve Temperature compensation Keyboard ZEDmod APPLICATION EXAMPLES Automotive: Complete engines, cylinder heads, gears, heat exchangers, control electronics, batteries, lines, valves, fuel cells, pumps, etc. Medical technology: Catheters, dialysis filters/boxes, flushing/hose systems, secretion containers, syringes, external lung machines, etc. Medical technology: Catheters, dialysis filters/boxes, flushing/hose systems, secretion containers, syringes, external lung machines, etc. Packaging/cosmetics: Dispensing pumps, plastic bottles, cartridges, etc. Household appliances: Water distributors/pumps, gas valves/fittings, stoves, compressors, etc. General industry: Cylinders, safety/non-return valves, couplings, grippers, ball valves, seals, etc. PRODUCT FEATURES Control unit: PC-based control with powerful multi-core CPU and Windows Embedded 7 Slots for up to 4 measuring modules 17″ TFT color monitor with touchscreen Graphic display of the measuring procedure per channel Data storage > 1,000,000 test results > 1,000 freely configurable test programs Self-test function
