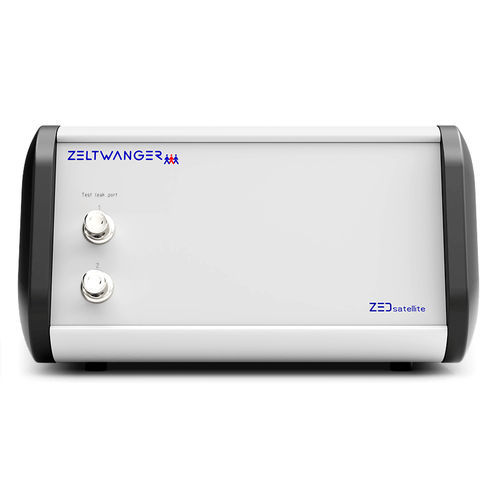

Pressure leak tester ZEDsatellite

flowfor medical devicesfor packaging

The ZEDsatellite decentralized measuring and testing modules enable measuring directly at the test object, increasing measuring accuracy and reliability. The data from the available measuring methods can be easily read out centrally via ZEDbox or any other unit from the ZED device family. MEASURING METHODS RD RD relative pressure (optional: 2-channel) RD / GP relative pressure with bell testing RD / DF relative pressure with flow rate DD differential pressure MF mass flow ACCESSORIES (OPTIONAL) Test leak Leak calibrator External ventilation valve Temperature compensation ZEDsatellite APPLICATION EXAMPLES Automotive: Engines, cylinder heads, gears, diaphragms, auxiliary heaters, power adapters, hybrid drives, heat exchangers, control electronics, batteries, lines, valves, fuel cells, pumps, etc. Medical technology: Catheters, dialysis filters/boxes, flushing/hose systems, secretion containers, syringes, external lung machines, etc. Packaging/cosmetics: Dispensing pumps, plastic bottles, cartridges, etc. Household appliances: Water distributors, water pumps, gas valves/fittings, stoves, compressors, etc. General industry: Cylinders, safety/non-return valves, couplings, grippers, ball valves, seals, throttle pins, etc. INTERFACES Auxiliary Temperature sensor Interface to the control unit Dimensions (H x W x D): 139 x 235 x 315 mm Weight: approx. 8 – 10 kg Power supply: 24 VDC (+10 / -5%) 5 A Test medium: Compressed air (oil and water-free according to ISO 8573-1 class 3)
