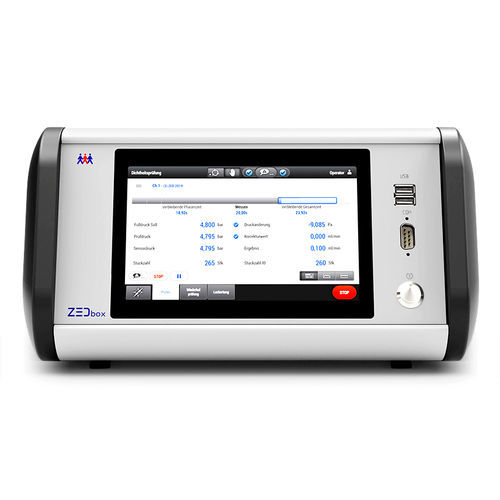

Laboratory control unit ZEDbox

digital

ZEDbox adapts to your requirements: As a network memory, the universal control and evaluation unit enables secure data transfer and archiving of all measurement results from your ZED family leak testing devices simultaneously. To ensure secure data exchange, ZEDbox can be individually adapted to your company’s ERP system and used as a gateway. In addition, the new, decentralized ZEDsatellite modules and individual devices can be controlled and their data evaluated via the universal control and evaluation unit. ZEDbox is compatible with all devices in the ZED device family. PRODUCT FEATURES PC-based control with powerful multi-core CPU (e.g., Intel ® CoreTM i7) and Windows Embedded 7 5″ TFT color monitor with touchscreen Data storage on SSD (capacity: customer-specific up to approx. 1 TB) ACCESSORIES (OPTIONAL) Memory Mouse Keyboard ZEDbox APPLICATION EXAMPLES Gateway to customer networks and applications Central network memory for ZELTWANGER leak testing devices Control unit for decentralized ZEDsatellite modules Control of customer-specific devices CONTROL OPTIONS PROFIBUS/PROFINET* Ethernet (Modbus) Barcode control (RS232) RS232 (Modbus) Configurable digital inputs and outputs* INTERFACES VGA: To connect an external monitor* USB and Ethernet interface: e.g., for file export in CSV, XML (test programs, results) RS232 interface: e.g., for the barcode scanner Dimensions (H x W x D): 153 x 365 x 391 mm Weight: approx. 8 – 10 kg Power supply: 24 VDC (+10 / -5%) 5 A Voltage output: 24 VDC (+10 / -5%) 3 A
