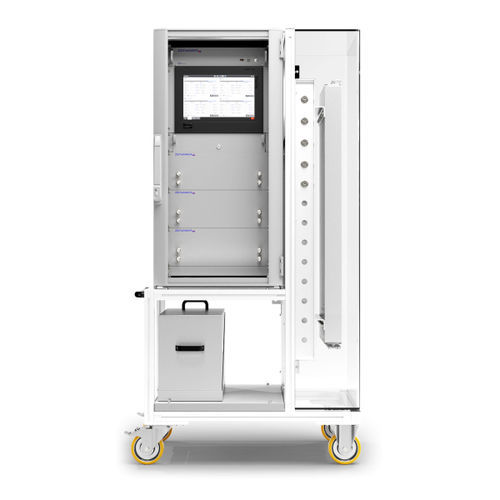

Pressure leak tester ZEDflex

flowfor medical devicesfor packaging

The leak testing solution ZEDflex meets customer-specific requirements by using measuring circuits that can be flexibly positioned. This involves using the most powerful ZED software. A universal evaluation unit enables secure data exchange and archiving of the measurement results. The compact ZEDsatellite or the ZEDcore plug-and-play module is used for the flexible measuring circuits. MEASURING METHODS RD RD relative pressure (optional: 2-channel) RD / GP relative pressure with bell testing RD / DF relative pressure with flow rate DD differential pressure SD accumulation pressure MF mass flow ACCESSORIES (OPTIONAL) Keyboard drawer Keyboard Screen (rack-mounted 17″) Barcode scanner External ventilation valve Frame for test setup APPLICATION EXAMPLES Automotive: Complete engines, cylinder heads, gears, heat exchangers, electronic control units, batteries, lines, valves, fuel cells, pumps, etc. Medical technology: Catheters, dialysis filters/boxes, flushing/hose systems, secretion containers, syringes, external lung machines, etc. Packaging/cosmetics: Dispensing pumps, plastic bottles, cartridges, etc. Household appliances: Water distributors/pumps, gas valves/fittings, stoves, compressors, etc. General industry: Cylinders, safety valves, non-return valves, couplings, grippers, ball valves, seals, etc. CONTROL OPTIONS PROFIBUS / PROFINET*** Ethernet (Modbus) Barcode control (RS232) RS232 (Modbus) Configurable digital inputs and outputs (module)*** INTERFACES VGA: To connect an external monitor USB and Ethernet interface: e.g., for file export in CSV, XML RS232 interface: e.g., for the leak calibrator Power supply: 24 VDC (+10 / -5%) 6.7A
