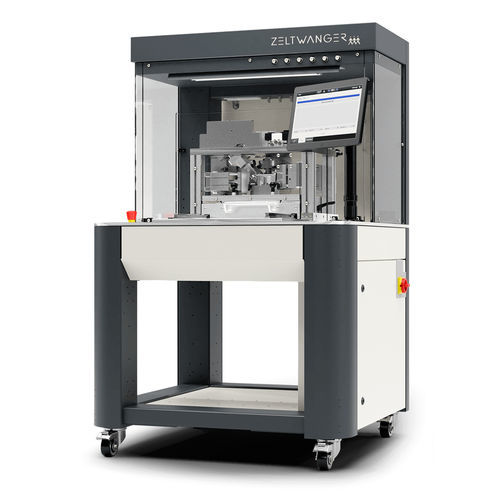

Pressure leak tester ZEDstation

flowfor medical devicespackaging

The ZEDstation closes the former gap between individual testing devices and fully automated systems. It enables you to test parts for leaks and function more economically and quicker than is possible with a manual individual test. MEASURING METHODS RD RD relative pressure (optional: 2-channel) RD / GP relative pressure with bell testing RD / DF relative pressure with flow rate DD differential pressure SD accumulation pressure MF mass flow ACCESSORIES (OPTIONAL) Label printer Barcode scanner Keyboard drawer NIO shaft Marking unit Laser marking Scorer Color marking ZEDstation APPLICATION EXAMPLES Automotive: Engines, cylinder heads, gears, heat exchangers, electronic control units, batteries, lines, valves, fuel cells, pumps, etc. Medical technology: Catheters, dialysis filters/boxes, flushing/hose systems, secretion containers, syringes, external lung machines, etc. Packaging/cosmetics: Dispensing pumps, plastic bottles, cartridges, etc. Household appliances: Water distributors/pumps, gas valves/fittings, stoves, compressors, etc. Household appliances: Water distributors/pumps, gas valves/fittings, stoves, compressors, etc. General industry: Cylinders, safety/non-return valves, couplings, grippers, ball valves, seals, etc. PRODUCT FEATURES Control unit: PC-based control with powerful multi-core CPU and Windows 10 IoT Enterprise 15″ TFT color monitor with touchscreen Data storage > 1,000,000 test results Intuitive operation with additional individual user guidance helps users to find their way around the station quickly Customer-specific combinations of leak and functional tests Simple and modular changing unit for quick changeover with different test objects
