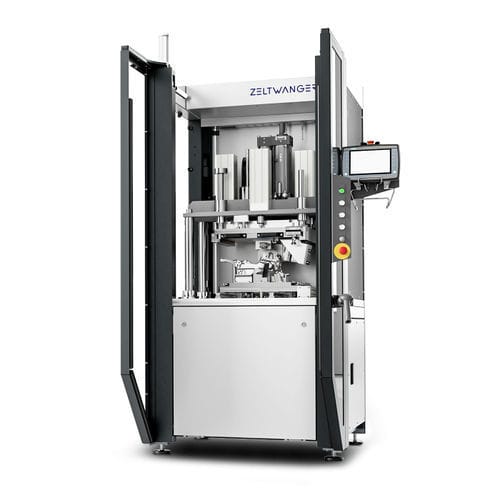

Pressure leak tester ZEDsystem

flowfor valvesfor packaging

ZEDsystem is an individually configurable sliding table system for leak testing. It allows additional processes to be integrated, fast changeover, and manual or automatic loading. ZEDsystem can be integrated into fully automated production lines or used manually and three choices of series offer the perfect solution for any customer requirement. MEASURING METHODS RD RD relative pressure (optional: 2-channel) RD / GP relative pressure with bell testing RD / DF relative pressure with flow rate DD differential pressure SD accumulation pressure MF mass flow ADDITIONAL PROCESSES Component marking using lasers (DMC code), scoring, punch marking, or color dot marking Joining Pressing balls / expanders Screwing Electrical test Presence monitoring Barcode / DMC scanning ZEDsystem APPLICATION EXAMPLES Automotive: Aluminum cast housing, cylinder blocks, cylinder heads, gears, heat exchangers, electronic control units, batteries, lines, valves, fuel cells, pumps, etc. Medical technology: Catheters, dialysis filters/boxes, flushing/hose systems, secretion containers, syringes, external lung machines, etc. Packaging/cosmetics: Dispensing pumps, plastic bottles, cartridges, etc. Household appliances: Water switches/pumps, gas valves/fittings, electrical components, etc. General industry: Cylinders, safety/non-return valves, couplings, grippers, ball valves, seals, etc. OVERVIEW OF THE SERIES PRODUCT FEATURES Control unit: Siemens or Beckhoff Control elements: Multi-touch mobile panel and control panel Communication: Connection to customer ERP systems via OPC UA, TCP/IP, SAP, master computer, … or USB and network interface, e.g. for file export in CSV, XML
