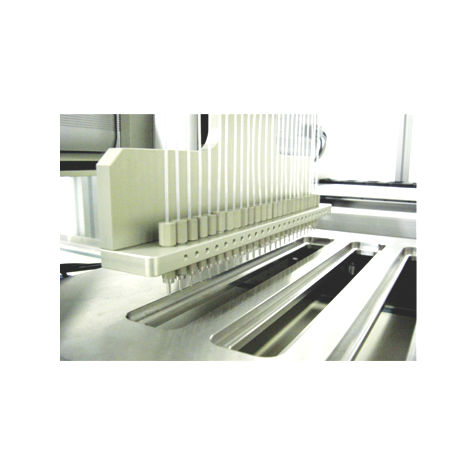

Robotic reagent dispenser DSG-025

for immunofluorescence assaysmulti-channel

DSG-025 is a precision reagent dispensing system specifically developed for production efficiency and throughput. This custom solution can be made to fit from 1 to 25 or more dispensing channels (as per customer’s requirement) for simultaneous dispensing onto printed glucose sheets. FEATURES Multi-channel lines for the ultimate dispensing production efficiency and throughput. Programmable touch screen panel allows for easy setup and operation Dispensing selection of line or dot Dispensing lines of single to multiple lines can be selected for flexibility of operations Reversible pump allows for easy functions for purging, cleaning, and reclaiming Micrometer for fine-adjustment of space between dispensing lines and tip height Adjustable dispensing volume (total and per cm) and bed feeding speed Equipped with advanced precision robotic conveyance system Separate pumps per channel ensure accurate dispensing vol., easier control and higher stability. Tip cleaning function to upkeep dispensing accuracy SPECIFICATIONS - Applicable Sheet Size: Max. 320 x 320 mm - Dispensing Volume: Micro-liter to nano-liter (As per customer’s requirement) - Pump: Hi-resolution pump - Accuracy: Less than 1.0% deviation from expected result at full stroke - Precision: Less than 0.05% CV at full stroke - Power: 110 or 220VAC, 1P, 50/60Hz - Current: 0.6KVA, 6A
