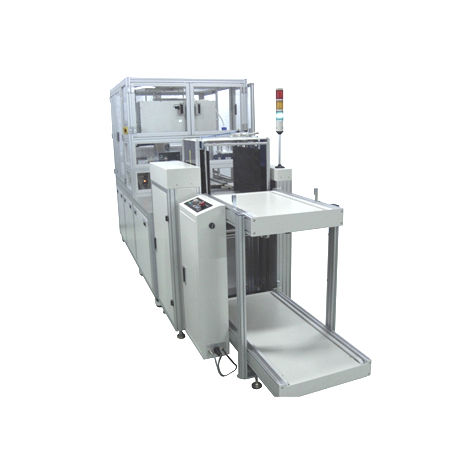

Automatic reagent dispenser DAG-120

laboratoryfloor-standingmulti-channel

DAG-120 is an in-line system which is designed for automatic and continuous processing of reagent dispensing in line or dot onto glucose test sheet. In addition to the dispensing module, the system is integrated with vision inspection (optional) and drying modules for the most optimized dispensing requirement in terms of production efficiency, accuracy, and repeatability. The entire operation is automatic and hands-free for the maximum production benefit. FEATURES Non-stop continuous automatic process for the ultimate production benefits Vision inspection and defect marking for absolute quality control (optional) Precision temperature controller for dry oven Built-in pump cleaning device Easy dispensing control by the use of multi-channel pump Accurate dispensing volume by the use of precision-grade pump Convenient dispensing volume calibration by the use of conical tube SPECIFICATIONS - Applicable Sheet Size: Max. 320 x 320 mm - Material Loading: Magazine type - Conveyance Method: Conveyor belt type - Dispensing Volume: Micro liter to nano liter (As per customer’s requirement) - Pump Type: High resolution pump - Accuracy: Less than 1.0% deviation from expected result at full stroke - Precision: Less than 0.05% CV at full stroke - Dry Oven: Temp. 30~60℃, 3 zones (20 minutes/zone), elevator type - System Control: PLC & Touch screen - Dimension: NA (Available upon request) - Weight: N/A (Available upon request) - Power: 380VAC, 3P4W, 50/60Hz - Current: 20KVA, 35A - Air Requirement: 5~7 kgf/㎠
