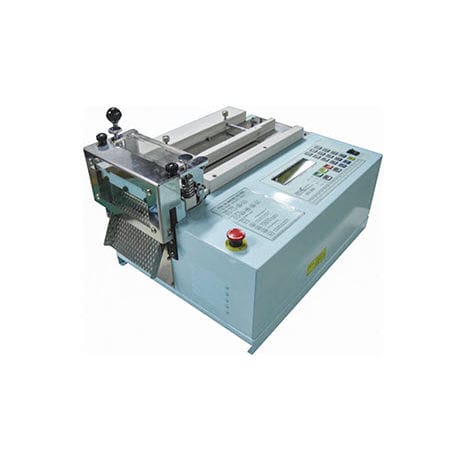

Test strip cutting module GCI-800

Programmable Guillotine Cutter is a heavy-duty programmable cutting instrument that cuts various types and sizes of finished card/uncut sheet into final strip form. The unit works by manually loading the card/sheet onto the feeding guide where the guillotine blades cut the card into strip width one at a time. As the cutting width can be easily changed for those with several cutting (strip size) requirements and with its low-cost, it is an ideal unit for R&D or any production scale facilities. FEATURES COST-EFFECTIVE One machine can handle multiple cutting requirements. Cutting loss is minimized to about 15 mm (leftover at the end part of card). *Can be reduced to less than 5mm when continuously fed. USER-FRIENDLY Quick & Easy programmable key pad allows for: - Easy adjustment of cut width and speed. - Smart memory function saves up to 10 job settings. Automatic cutting process (Simply input desired data & start). Simple operation for minimal maintenance PERFORMANCE High-speed cutting operation Accurate precision cuts (Cutting accuracy: ±0.1mm) Specially coated blades for improved lifespan. FLEXIBLE Adjustable cut strip width. Handles wide range of card size (Up to 100mm width). Compact & Lightweight for portability. PRODUCT SPECIFICATIONS - Card Feeding Method: Manual - Capacity: Max. 240 strips/minute (Based on 3mm cutting) - Applicable Card Width: Max. 100 mm - Applicable Card Thickness: Max. 2.5 mm (Depends on the characteristics of card) - Cutting Range (Width): 2.0~99,000 mm - Cutting Accuracy: ±0.1 mm - Strip Count: Auto stop control - Blades: Hardened steel with titanium-coating
