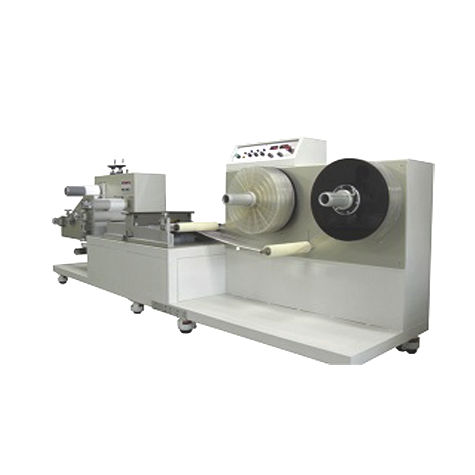

Diagnostic material laminating module SMU-300

SMU-300 is an automated laminating (tape) and slitting system developed for converting a wide membrane roll stock (pre-treated) into multiple splits of adhesive-ready membrane strip rolls. The system works by first laminating double-sided tape onto the wide membrane roll, then splits the wide roll into a number of narrowed widths, and then are re-wound into individual reels to finalize the process. The finished rolls are now ready for the next mfg. phase of Membrane Lamination onto Backing. The entire process is done automatically and mechanically for maximum production efficiency, and product quality. FEATURES Simultaneous taping & splitting process for production efficiency and low material-loss Can handle up to 270 mm width and 100 m long membrane roll Air shaft equipped to make reel loading/unloading quick & easy Mechanical tape lamination reduces contamination factors Adjustable cutting speed allows for convenient and flexible operation SPECIFICATIONS - Feeding Speed: Variable (10~100 mm/sec) - Membrane Cutting Size: 5 mm (As per customer’s requirement) - Number of Splitters: As per customer’s requirement - Membrane Roll Size: Width: Max. 300 mm, Length: Max. 100 m (As required) - Double sided adhesive tape: (As per customer’s requirement) - Dimension: (Approx.) 3600(L) × 800(W) × 1315(H) mm - Weight: (Approx.) 500 kg - Power: 220VAC, 1P, 50/60Hz - Current: 2.5KVA, 12A
