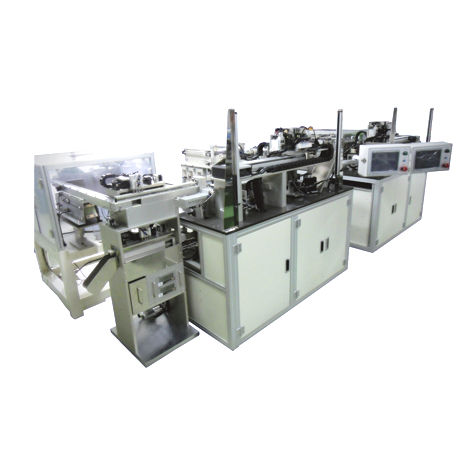

Automatic filling machine PAG-440

continuousroboticmodular

PAG-440 is a fully automated system which is developed to carry out a multitude of job processes up to the final product of filled bottles by the use of “Good” row card. The entire operation that starts with row slitting (to convert row into cell), cell bottling (filling-up bottle with cells), and the capping process (closing bottle with cap) are done in one continuous and automatic fashion. FEATURES Non-stop continuous automatic action for the ultimate production benefits Auto bottle-feeding by bowl feeder Robotic modular system for material feeding and transporting Adjustable quantity of cells per bottle (standard: 25cells, option: 10, 50cells) High precision slitter for maximum cut accuracy Easy removal of blade head for easy cleaning and maintenance SPECIFICATIONS - Required Manpower: 1 person - Capacity: Max. 1,200 bottles/hour (Based on Tact time, 25cell bottling) - Magazine Capacity: Max. 400 sheets (Stackable loading quantity) - Applicable Bottle Type: Sanner or CSP - Cutting Cell Size: 5.5±0.1 mm (Based on electrode size) - Dimension: (Approx.) 6.0(L) x1.7(W) x1.9(H) m - Weight: NA (Available upon request) - Power: 220VAC, 1P, 50/60Hz - Current: 1.5KVA, 8A - Air Requirement: 5~7kgf/㎠, clean air
