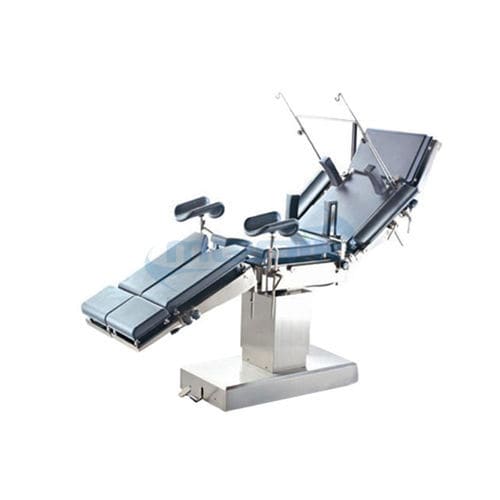

Orthopedy operating table YA-06E

electricradiolucentadjustable height

Main features - Contours to virtually all patient postures with a five-section tabletop. - Accommodates virtually all patients with generous height ranges. - Wire controller for different movements and Column control panel with locking function for movements. - Table top height and backrest adjustment, lateral tilts, Trendelenburg and reverse Trendelenburg tilts are performed thanks to wire hand controller. - The head rest segment and one-piece leg rest segment adjustment is manually performed by locking gas springs. - Divided, two parts leg rest segments are adjusted by means of gear transmission. - The structure is made of SUS304 mirror stainless steel. - The table base is controlled by a foot lever. - The antistatic, seamless mattresses are removable from the segments of the table top and resistant to disinfecting agents. Technical parameter Model - YA-06E Overall size - 2150*500*750-1000mm HI-LOW - 750mm-1000mm Head board fold upward and fold downward - ≥30°/≥90 Back board fold upwardand fold downward - ≥45°/≥15° Leg board fold downward and fold outward - ≥90°/≥90° Trendelenburg and reverse-trendelenburg - ≥25° Left and right tilting angle - ≥15° Loading capacity - 200kgs Waist board lifting - ≥110mm Power - AC220V 50HZ Input power:300VA Packing - 148*76*95cm=1.1M3 G.W.:280kgs
