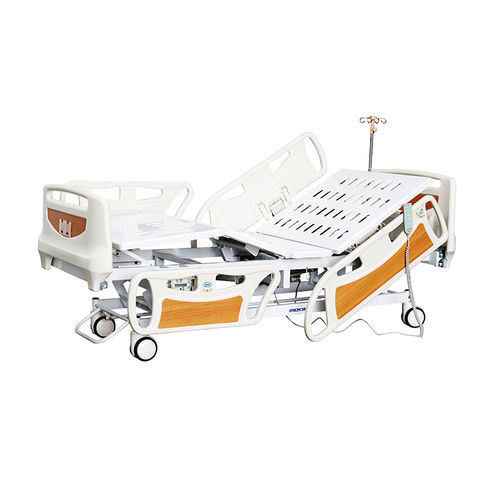

YA-D5-7 Five Function Hospital Electric Bed With CPR
Model:YA-D5-7
Overall Size:2240*1060*500-780mm
Safe Working Load: 225kg
Functions:Back secticn adjustable,Foot secticn adjustable,High-low,Trendelenburg
,Reverse trendelenburg
Features:
Four split side rail,drop down under platform
Hand remote control
Detachable head/foot board with easy lock
Caster diameter of 125mm with diagnoal locking
Bumper caster on four corners
Auto-counter to provide the patient from sliding onto foot end
Specification
- Bed Frame Electrophoresis and powder coating
- Bed platform Wholly molded cold steel sleeping platform
- Motor Quiet and robust electric actuators provide reliable operation
- Hand remote controller of all electrically operated functions and movements
- Handrails Four split side rail,drop down
- Head and Foot board ABS material, detachable
- Castors: Four silent duty wheels,two with brakes, φ125mm
- Bumper castors Bumper castors on 4 corners of bed
- Angle indicator With angle indicator embeded in the railing for back and trendenleburg adjustment(optional)
- Auto-counter function Auto-counter to provide the patient from sliding onto foot end
- Mechanical CPR function Control by the CPR handles on both sides of bed to realize the CPR procedure in one step
Model - YA-D5-7
Size - 2240*1060*500-780mm
Lying surface: - 2045× 900mm
High-Low: - 500-780mm
Back secticn adjustable - 0° to 75°
Knee secticn adjustable - 0° to 40°
Trendelenburg - 0° to 12°
Reverse trendelenburg - 0° to 12°
Safe working load - 225kg
