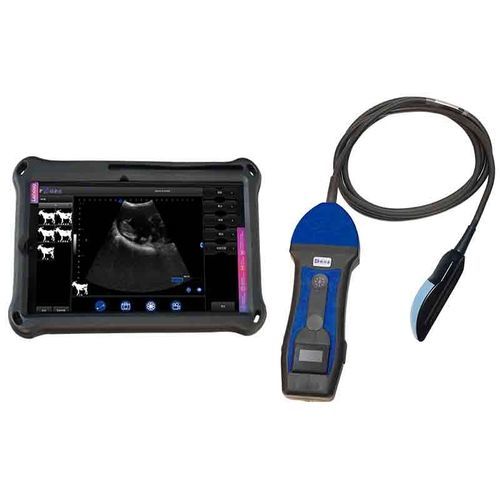

Portable veterinary ultrasound system BXL-S204

multipurposefor small animalsfor cattle

1.1. The whole machine is waterproof and dustproof, with a waterproof level of IPX7; strong and durable 1.2. Fully digital wireless animal-specific Doppler color ultrasound system, suitable for scanning pigs, donkeys, wild animals and other animals 1.3. Number of channels: 24 1.4. Built-in lithium battery, working life ≥5 hours. Type-c data cable charging, wireless charging, car-mounted, fast charging, power bank power supply 1.5. Ultrasound system scanning mode: B, 2B, 4B, B/M, M and other display modes, Doppler color ultrasound C mode 1.6. Doppler color ultrasound C mode imaging: all equipped probes support color Doppler imaging, probe color Doppler frequency ≥ 3 groups 1.7. Color Doppler sampling frame angle ≥ ±15 degrees adjustable, color gain ≥255dB 1.8. The host system comes with a Wi-Fi module to realize wireless transmission mode, 5G transmission 1.9. Wireless connection display supports: iPad tablets, smart phones, laptops, desktop computers. The display size and resolution can be selected by yourself 1.10. The display is installed with free APP for wireless display. The APP is compatible with the following operating systems: Android (Android), Windows (Microsoft) 1.11. System grayscale: 256 levels, system dynamic range ≥180dB, A/D conversion ≥12bit 1.12. Clip gain: TGC is adjustable in eight segments, TGC can be adjusted with one button 1.13. Parameter sliding adjustment 1.14. It has Chinese and English operation interfaces 1.15. Host startup time: 1 second. The host has a freeze key full digital beamformer 1.16. Scanning depth: the maximum depth of the rectal convex array probe is ≥27cm
