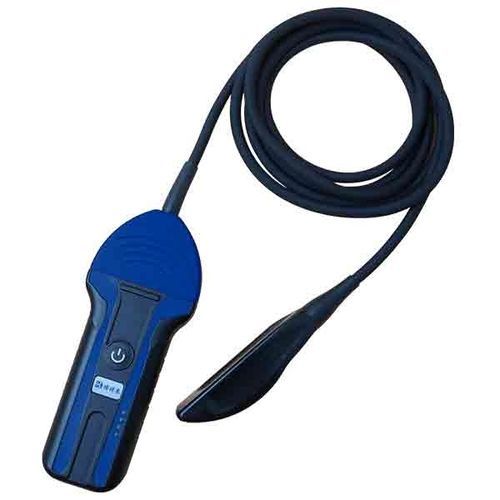

Portable veterinary ultrasound system BXL-S104

multipurposefor small animalsfor cattle

1.1. The whole machine is waterproof and dustproof, waterproof level IPX7; strong and durable 1.2. Fully digital wireless animal-specific ultrasound system, suitable for scanning pigs, donkeys, wild animals and other animals 1.3. Built-in lithium battery, working time ≥5 hours. Type-c data cable charging, can be used for wireless charging, car mounting, fast charging, and power bank power supply 1.4. The host system comes with a Wi-Fi module to implement wireless transmission mode and 5G transmission. 1.5. Wireless connection display supports: iPad tablets, smartphones, laptops, and desktop computers. Display size and resolution can be customized 1.6. Install a free APP wireless display on the monitor. The APP is compatible with operating systems: Android (Android), Windows (Microsoft) 1.7. Inspection type: The software has built-in inspection preset modes for embryos, ovaries, uteruses, urinary systems, backfat, and other parts of animals such as pigs, donkeys, etc. Each mode can be selected for corresponding inspections and professional Measurement. Corresponding host parameters have been fixed in each mode. Check mode ≥ 30 kinds 1.8. Image display mode: B, 2B, 4B, B/M, M and other display modes. 1.9. Harmonic imaging: two levels Frequency: 2.9-5.0MHz Gain adjustment: 0-255 Dynamic range adjustment: 0-15 Transmit power: 0-3 1.10. Focus: 3-15 13-position adjustment 1.11. Scanning depth: Maximum depth of rectal convex array probe ≥ 27cm 1.12. Fragment gain: TGC eight levels adjustable, TGC can be adjusted with one click 1.13. Parameter sliding adjustment 1.14. With Chinese and English operation interface
