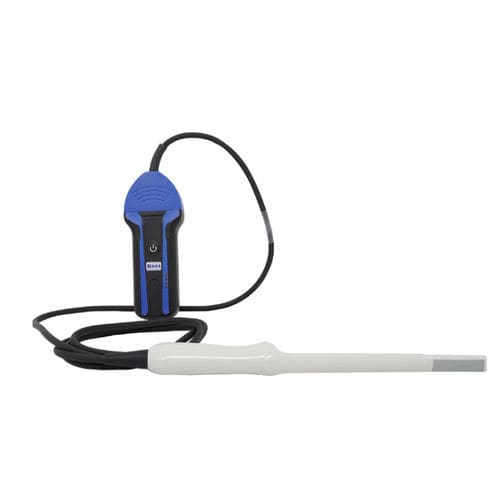

Portable veterinary ultrasound system BXL-S103 lPX7

multipurposefor sheep

The BXL-S103 is a waterproof and dustproof wireless ultrasound system, ultrasound for sheep, that provides clear imaging for detecting pregnancy in sheep, as well as follicle and corpus luteum development. Working time: ≥5 hours Wireless transmission: supported Image display modes: B, 2B, 4B, B/M, M Harmonic imaging: two levels Frequency: 5-10MHz Gain adjustment: 0-255 Dynamic range adjustment: 0-15 Transmit power: 0-3. Scanning depth: Maximum depth of rectal linear array probe ≥27cm. Gain: Eight-stage adjustable System language: Chinese, English Grayscale: 256 Channels: 16 Position markers: ≥60 One-key measurement of backfat thickness. Storage: Storage and preview of static images, storage and playback of dynamic cine images ≥255 frames, expandable Power supply: 100-240V~0.8A Weight: 300g (including probe) Image frame rate: 60 frames per second Host size: 174×70×28mm Optional configuration: 6.5MHz sheep rectal probe
