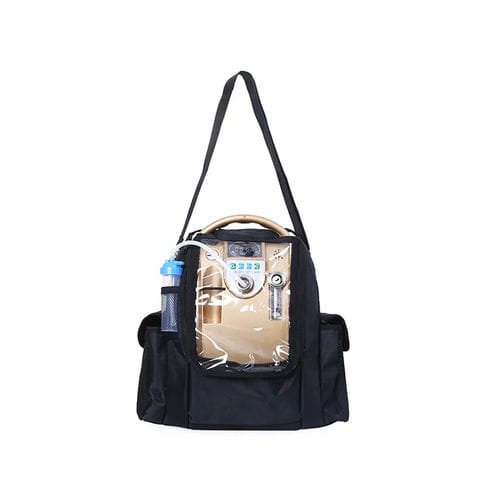

Medical oxygen concentrator 00103
portablecontinuous flow1-tank

Medical oxygen concentrator - 00103 - Zhengzhou Olive Electronic Technology - portable / continuous flow / 1-tank
Medical oxygen concentrator - 00103 - Zhengzhou Olive Electronic Technology - portable / continuous flow / 1-tank
Medical oxygen concentrator - 00103 - Zhengzhou Olive Electronic Technology - portable / continuous flow / 1-tank - image - 2
Medical oxygen concentrator - 00103 - Zhengzhou Olive Electronic Technology - portable / continuous flow / 1-tank - image - 3
Medical oxygen concentrator - 00103 - Zhengzhou Olive Electronic Technology - portable / continuous flow / 1-tank - image - 4
Medical oxygen concentrator - 00103 - Zhengzhou Olive Electronic Technology - portable / continuous flow / 1-tank - image - 5
Medical oxygen concentrator - 00103 - Zhengzhou Olive Electronic Technology - portable / continuous flow / 1-tank - image - 6
Add to favorites
Compare this product


Characteristics

Applications
medical
Configuration
portable
Operating mode
continuous flow
Other characteristics
1-tank
Volume

5 l
(1.32 gal)

Flow rate

Min.: 1 l/min
(0.264 us gal/min)

Max.: 5 l/min
(1.321 us gal/min)

Oxygen pressure

Min.: 0.04 MPa

Max.: 0.06 MPa

Oxygen purity

Min.: 87 %

Max.: 93 %

Noise level

40 dB

Power

90 W

Length

245 mm
(9.6 in)

Width

181 mm
(7.1 in)

Height

365 mm
(14.4 in)

Weight

5.4 kg
(11.9 lb)

Description

The Portable oxygen concentrator is a kind of machine that makes oxygen, and its principle is to use air separation technology.Firstly, the air is separated at a certain temperature by the condensation point of each component in the air with high density compression and then further distillation is obtained.The adsorption property of molecular sieve is used to separate the nitrogen from the oxygen in the air by the physical principle, and the nitrogen in the air is separated from the oxygen, and finally the high concentration of oxygen is obtained.This type of oxygen producing machine produces oxygen rapidly, oxygen concentration is high, suitable for all kinds of people oxygen therapy and oxygen health care.Electricity consumption is low, an hour's cost is only a quarter of the money, use price is low. Advanced Features: 1. Low power consumption, low cost of oxygen production ​ 2. a full set of gas lines are low-pressure system program control, safe and reliable operation; 3. stable performance, low maintenance costs; 4. continuous oxygen, stop freely, flow adjustable, with the use of the system; 5. easy to operate, stable performance, low noise; 6 . optional "atomization" device, oxygen and atomization therapy can be carried out at the same time; 7. with oxygen concentration monitoring and power failure alarm function; How to use the oxygen concentrator to correctly absorb oxygen? The scientific selection of oxygen therapy time;For some patients with mild hypoxia, oxygen therapy can be carried out for half an hour to 1 hour per day.
