Medical oxygen concentrator OLV-C1
portablePSA

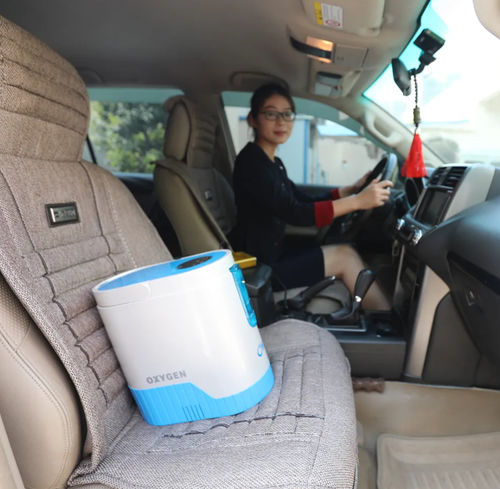

Medical oxygen concentrator - OLV-C1 - Zhengzhou Olive Electronic Technology - portable / PSA
Medical oxygen concentrator - OLV-C1 - Zhengzhou Olive Electronic Technology - portable / PSA
Medical oxygen concentrator - OLV-C1 - Zhengzhou Olive Electronic Technology - portable / PSA - image - 2
Medical oxygen concentrator - OLV-C1 - Zhengzhou Olive Electronic Technology - portable / PSA - image - 3
Medical oxygen concentrator - OLV-C1 - Zhengzhou Olive Electronic Technology - portable / PSA - image - 4
Medical oxygen concentrator - OLV-C1 - Zhengzhou Olive Electronic Technology - portable / PSA - image - 5
Add to favorites
Compare this product


Characteristics

Applications
medical
Configuration
portable
Type
PSA
Volume

5 l
(1.32 gal)

Flow rate

Min.: 1 l/min
(0.264 us gal/min)

Max.: 5 l/min
(1.321 us gal/min)

Oxygen pressure

Min.: 500 Pa
(0.073 psi)

Max.: 700 Pa
(0.102 psi)

Oxygen purity

Min.: 87 %

Max.: 93 %

Noise level

40 dB

Power

90 W

Length

310 mm
(12.2 in)

Width

165 mm
(6.5 in)

Height

310 mm
(12.2 in)

Weight

5.4 kg
(11.9 lb)

Description

Working principle of oxygen concentrator: using molecular sieve physical adsorption and desorption technology.The oxygen concentrator is filled with molecular sieves, which can be absorbed by nitrogen in the air when pressurized. The remaining unabsorbed oxygen is collected and purified to become a high purity oxygen.Molecular sieve adsorption in relief when the nitrogen emissions to the environment in the air, the next time preparing the pressurization and adsorption of nitrogen and oxygen, the whole process for periodic dynamic cycle, molecular sieve is not consumption type molecular sieve oxygen generator is a kind of advanced gas separation technology, physical methods to extract oxygen from air directly, namely the system box, fresh and natural, there is no high pressure and explosive and dangerous.Olive production of home care anion oxygen concentrator is easy to use, mobile and light, suitable for the use of health care.Car household two - purpose, can be suitable for household, also can use car power to put on the car to use.Oxygen is a colorless and odorless gas, which is an important material for the survival of the human body, and is also an important material for other animals and plants to survive.Without oxygen the natural world would be lifeless, devoid of life, and its importance as water.It has a wide range of applications, from all walks of life to oxygen, including health care and beauty care. Product Features: A variety of functions: olive oxygen concentrator in addition to meet the standards specified in the performance, such as oxygen concentration monitoring, when the alarm (power, high temperature, high pressure, low pressure) of wetting and ato
