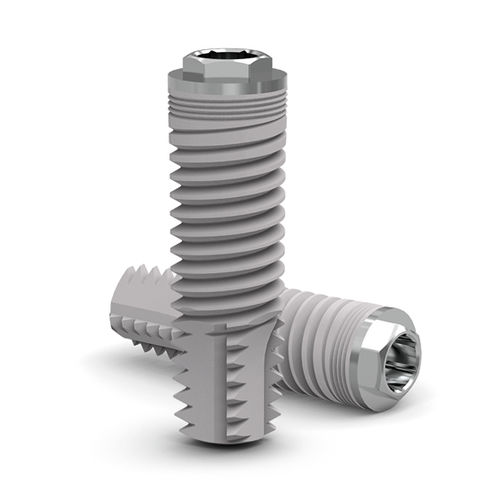

Titanium dental implant ZM8®N

external hexagonstraight

ZM8®N FEATURES •Morphology: cylindrical •Material: titanium •Connection: external hexagon • Implant lengths: 9 mm, 11 mm, 13 mm, 15 mm •Implant diameters: 3.75mm, 4.00mm, 4.30mm •Available platforms: 4.10mm CONNECTION » External hexagonal connection: simplicity and versatility » Upper screw canal: facilitates screws insertion CORTICAL AREA » Mechanised ring (0.4mm): allows the prosthetic gap to be raised from the crestal bone in medium/thick biotypes; prevents exposure of treated surface in irregular crest » Micro-thread design: preserves marginal bone » Micro-thread extension: improves load distributions » Macro-design: excellent cortical compression BODY » Reduced angle lead threads: provide stability during insertion and increase BIC (bone-implant contact) » Double lead thread: quick insertion and reduction of surgical time » Active apex (self-tapping): makes the implant insertion easy with undersized drilling technique » Transversal apical vents: collect bone detritus during the insertion » Optimised morphology: high primary stability
