Cervical cancer screening device ZedScan™

electrical impedance spectroscopy

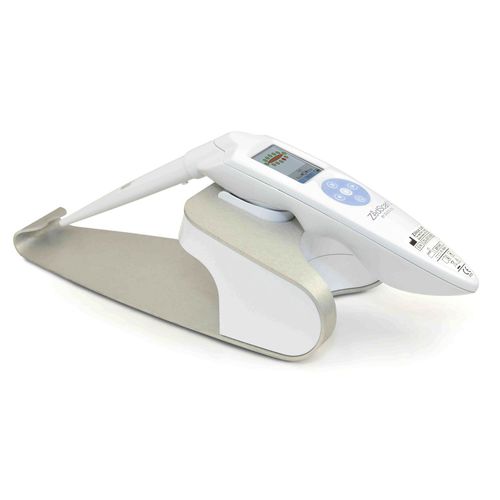

What is ZedScan? ZedScan and docking stationZedScan is a diagnostic system that is used alongside colposcopy to provide an objective assessment of the cervical epithelial tissue in real time. The multi-component system consists of: Portable handset Docking station Single use EIS sensor Software application ZedScan provides: Seamless integration into colposcopic practice Non-optical diagnosis Rapid, real-time results Improved accuracy Better patient management Simple, easy to use system Z1 e2 d3 Scan4 1. Z is the scientific symbol for impedance and also stands for Zilico 2. e represents EIS the core technology in the device 3. d stands for device 4. Scan - the device is used to scan the cervix to identify potential areas of disease 1. Handset Docking Connector Connects the handset to the docking station for charging and transfer of data. Permits remote and cable free operation allowing the clinician to manipulate and position the handset as necessary to examine the cervix. 2. Microswitch Registers when an EIS sensor is attached. Will detect if the sensor becomes loose or detached during use prompting a warning alert. 3. USB cable with isolation unit Connects the system to the PC for charging and transfer of data. Easy to install and operate. Isolation unit prevents user and patient from any hazards associated with connecting to a non ISO 60601 certified PC. 4. Docking station four pin connector Receives the handset for charging and facilitates data transfer. Handset should be stored docked when not in use. Permits remote and cable free operation of the handset.
