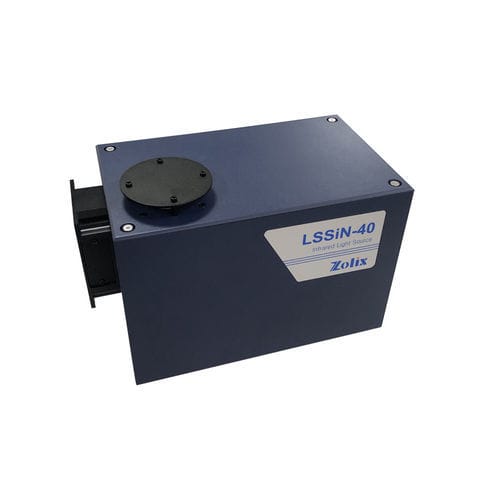

Spectrometry light source LSH-SiN40

other light sourcesinfrared

Carborundum Infrared Light Source is combinated light housing and power supply（LSP-T200）.It has high Luminous efficiency, small Luminous area, collect easily;donot need water cooling and it is very convenient for application , the life time is 2000hours. Light housing specification Power: ：≥40W Spectral Range: 1-14μm（1-16μm） f/#：f/4 Luminous size: 4mm×15mm Volage:8V Current :6A Temperature of Silicon carbide: 900-1200℃ The life time of Silicon carbide:2000hours The optical center height of optical port: 128～168mm Steady current and volgae specification of LSP-T200 Power: 200 W Current : 0-10 A Volage: 0-20 V Current stability：<0.1% Volage stability：<0.1% Power supply: AC220V±10%
