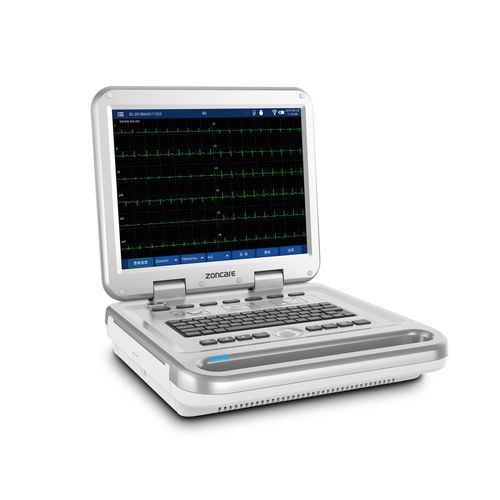

Resting electrocardiograph iMAC1800pro

18-channeldigitalwith printer

iMAC 1800 supports 18-lead synchronous acquisition and simultaneous observation of the left ventricular and right ventricular myocardial ischemia, effectively solves the clinical problems which général 12 Channel ECG machines cannot observe multiple body parts simultaneously, greatly increases the diagnostic accuracy and timeliness of myocardial infarction and myocardial ischemia, avoiding misdiagnosis. Excellent performance Sampling rate is reaching to 32000Hz each channel, and sampling data is 24 bits 1s baseline stability Frequency response range: 0.01-350Hz Glasgow ECG algorithm Support automatic analysis and measurement Support bipolar pacemaker détection Support period sampling Support hierarchical gain Original iFilter™ adaptive filtering technology has greatly improved the ECG signal quality Leading position of diagnostic ST segment élévation myocardial infarction Support Advanced ECG analysis: Vector ECG, Time Vector ECG, Ventricular Late Potential (VLP), QT Dispersion, and Frequency Cardiogram (FCG) Innovative Ergonomie Design Full QWERTY keyboard and tracking bail opération Three-pronged ECG leads, effectively reduce winding Multi-axis TP Innovative thermal printer can make every printout clear and meticulous Powerful Network Features Storage Format: HL7, XML, SCR PDF, PNG, DICOM, ZQECG
