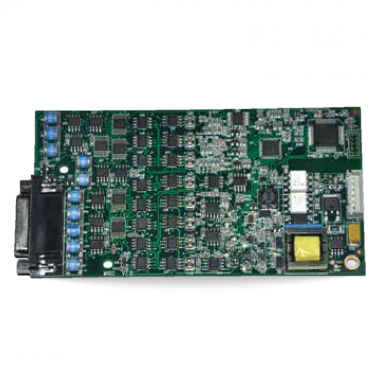

ECG module for multi-parameter monitor MECG12

TEMPRESPpulse rate

Our 12 Leads ECG module is suitable for emergency monitoring, often integrated in Patient Monitors. It provides high performances for the diagnostic of arrhythmia, conduction block, myocardial infarction and chamber room hypertrophy. Its analysis capabilities comply with the MIT database. This module has been integrated in several types of ECG systems designed by our clients, which are CE certified and already sold worldwide. It provides the electrical isolation and the performances required to pass all certification tests, ensuring our customers a successful launch of their products. It is suitable for integration in patient monitors. FEATURES Provides 12 leads ECG monitoring 4 measurement modes : diagnose, monitor, HARDEST and operation measurement Special function of ECG analysis, verified by MIT database. Arrhythmia diagnosis. Patient electrical isolation for safety Compliant with IEC60601-2-25 standard Compatible with ZugMed protocol For integration in Patient monitors Customised design and protocol upon request. SPECIFICATIONS Electrical and Mechanical Specifications Voltage: +12V DC, offset voltage between ±10% of full range Power consumption: ≤ 3W Dimension: 130mm×70mm×13mm Performances Input impedance: 5MΩ Common mode rejection ratio: diagnose mode 100dB, monitor mode 105dB Polarization voltage: ±450mV Baseline recovery time: < 3s Noise: < 30μV Wave Filtering Mode: Low-pass filtering: 70Hz, 100Hz, 150Hz High-pass filtering: 0.05Hz, 0.1Hz, 0.2Hz, 0.5Hz Myoelectricity filtering: 25Hz, 35Hz, 45Hz Alternative current filtering: 50Hz, 60Hz, None Average false detection rate: 0.26% Average sensitivity: 99.8% Average positive predictive rate: 99.94% (MIT database)
