Baumeister & Schack linear actuators

Load capacity: 500, 250, 1,400, 700 N
Speed: 10, 5, 40, 20 mm/s

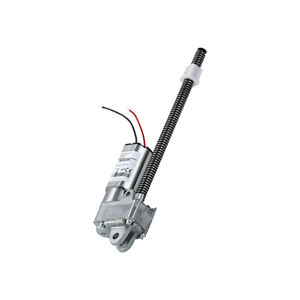

Compact DC screw jack actuator. Available with two alternate spur gear variants and lead screw pitches. Suitable for controlled inhibited operation with max. current 2 Amps. TECHNOLOGY AND FEATURES DC Motors 12÷24÷36 ...

Load capacity: 600, 800, 1,000, 1,600 N
Speed: 5, 10, 20, 25 mm/s

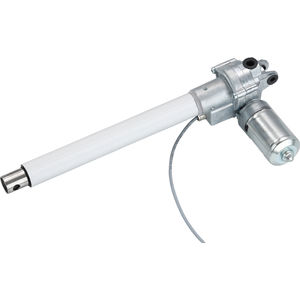

DC Actuator with worm gear drive. Rotating lead screw with spindle nut. Suitable for controlled inhibited operation with max. current 6 Amps. Additional external end switches preferred. Technology and features DC ...

Load capacity: 600, 800, 1,000, 1,600 N
Speed: 5, 10, 20, 25 mm/s

DC Actuator with worm gear drive. Rotating lead screw with spindle nut and push tube. Integrated end switches in upper/lower end position. Technology and features DC Motors 12÷24÷36 V Standard protection up ...

Load capacity: 300, 400, 500, 1,000, 600 N
Speed: 10, 20, 40, 45 mm/s

Compact DC actuator with spur gear drive for multi-purpose use. Rotating lead screw with spindle nut. Suitable for controlled inhibited operation with max. current 4 Amps. Additional external end switches preferred. Technology ...

Load capacity: 300, 400, 500, 1,000, 600 N
Speed: 10, 20, 40, 45 mm/s

DC Actuator with worm gear drive. Rotating lead screw with spindle nut and push tube. Integrated end switches in upper/lower end position. Technology and features DC Motors 12÷24÷36 V Standard protection up ...

Load capacity: 6,000, 5,400, 2,700 N
Speed: 12.3, 6.8, 27.2, 13.6 mm/s

Pushing lead screw with different fixing points. Very quiet operation thanks to a solid die cast case. Suitable for controlled inhibited operation with max. current 12 Amps. Additional external end switches preferred. Technology and ...

Load capacity: 2,700, 6,000, 5,400 N
Speed: 6.8, 13.6, 12.3, 27.2 mm/s

Very strong DC actuator with worm gear drive up to 1500mm stroke length. Rotating lead screw with spindle nut and push tube. Very quiet operation thanks to a solid die cast case. Single sided brake available for high ...

Load capacity: 1,500, 3,000 N
Speed: 8, 4, 16 mm/s

Strong and compact DC actuator with worm gear drive. Rotating lead screw with spindle nut. Very quiet operation thanks to a solid die cast case and rubber bushed mounting points. Single sided brake available for high ...

Load capacity: 800, 1,000, 1,200, 1,500, 1,800 N
Speed: 8, 15, 25, 35 mm/s

Single stepped, slender and quiet DC actuator in coaxial geometry with gearing rate 1:35 and universal spindle adapter. Integrated end switches, optional mechanical brake in push direction. Technology and features DC ...

Load capacity: 1,800, 1,500 N
Speed: 15, 8 mm/s

Single stepped, slender and quiet DC actuator in coaxial geometry with gearing rate 1:35. Rotating lead screw with push tube in several stroke lengths. Integrated end switches, optional mechanical brake in push direction. Technology ...
