Fluxo laminar de ar de teto Operio

para sala de cirurgia

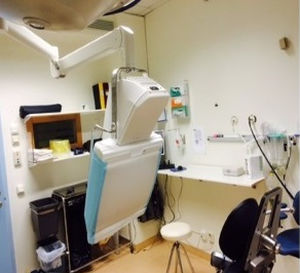

The ceiling-mounted unit, TOUL 200, is the solution of choice for those preferring a dedicated, fixed installation that can be optimally mounted without interfering with staff movements and other equipment. It is cleaning the air in a pre-defined area, by circulating the ambient air in the operating room through a HEPA filter to clean the air from bacteria and particles. The unit is mounted on an extendable pendant and has proven to be both cost-effective and very efficient to ensure ultraclean air over the surgery site. The unit distributes 400 m3 air per hour through a Flexible LAFscreen that forms the airflow into a column of air. This airflow is turbulence-free and is not impeded by the movements of the surgical team in the defined airflow area. Existing regular ventilation system does not affect the function of the unit. The TOUL 200 is easy to operate and is equipped with a touch screen display for adjustments and for positioning of the unit to the surgical site or other desired area. Toul is positioned very close to the operating field and therefore it is possible to reduce the contamination level by almost 95 %. The focused laminar flow acts directly on the surgical site and instrument table without being impeded by surgical lights or medical staff, thus reducing by up to 95% the bacterial load on the surgical site and instrument table. The ceiling laminar flow unit also complies with the rigorous standards of ISO class 5 for extreme sterile conditions in operating rooms. The barcoded sterile cover enables traceability of the system for defensive medicine purposes.
